Swivelpole™ R2 M2
2.4 - 3.0m

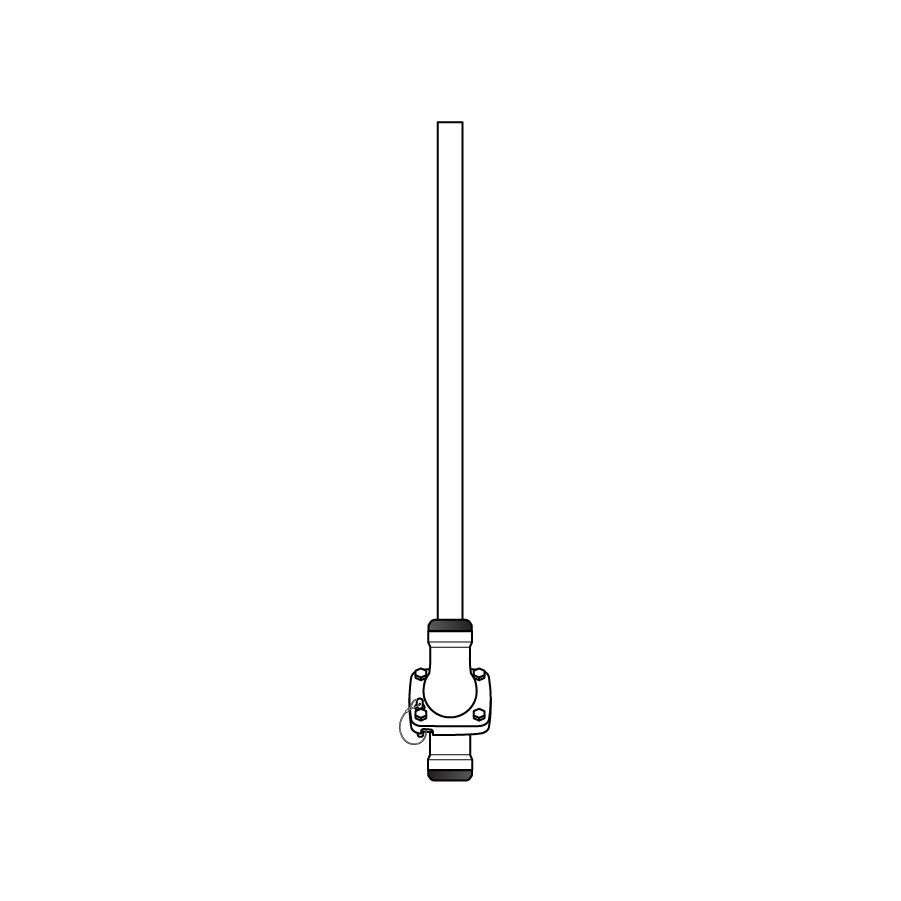

Maxis™ joint with pole top
- SuitsDN 50
- TopDN 50 Plain
Retrofit
Quick links
Details
- Designed for installation in accordance with IEC standards.

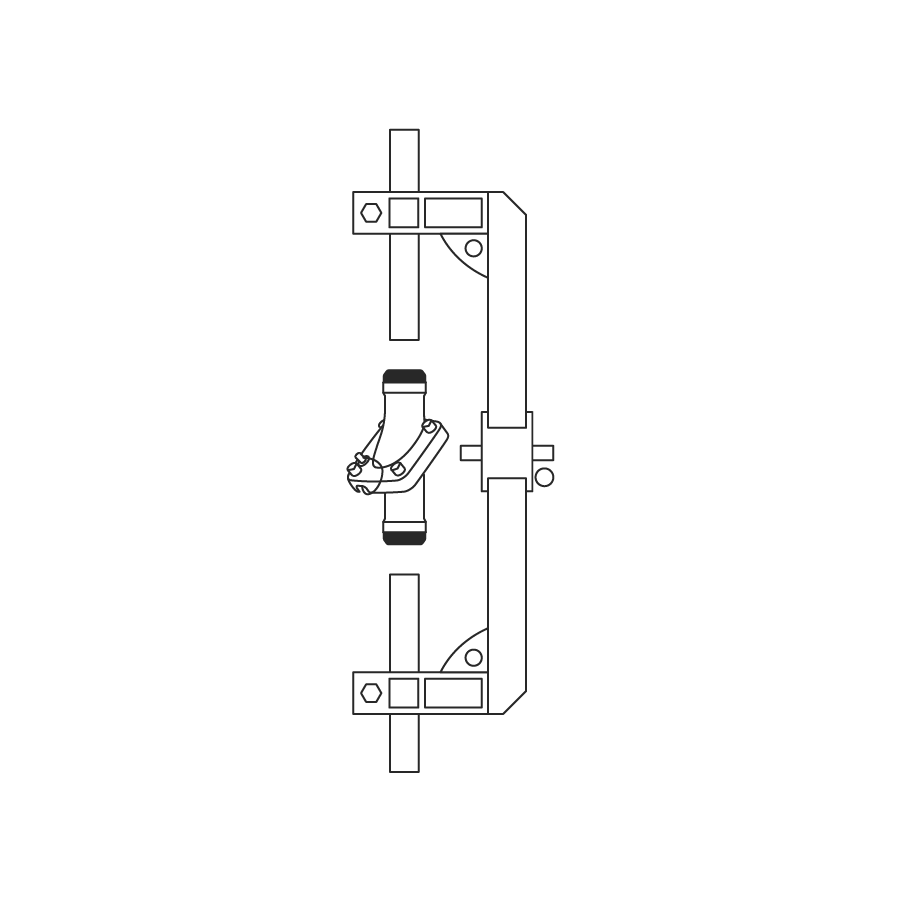

- Retrofit - Convert rigid poles to lowering poles by installing a Maxis™ joint using the pole conversion tool kit. Upgrade to LED without using a ladder.
Standard pole top finish options
- Aluminium (AL)
- Hot-dip galvanised (HG)
- Stainless steel (SS)
Standard Maxis™ joint finishes
- Hot-dip galvanised (HG)
- Stainless steel (SS)
Support material
User guides
Videos
Where to buy?
Ordering information
| Installed height | Pole top | Pole top length | Existing pole base | Weight | Max equipment weight* | Maxis™ joint finish | Pole top finish | Product code |
|---|---|---|---|---|---|---|---|---|
| 2.4m | DN 50 | 1200mm | DN 50 | 12.2kg | 20kg | HG | HG | R2-M2-50-2400-P-HG |
| 3.0m | DN 50 | 1800mm | DN 50 | 15.2kg | 20kg | HG | HG | R2-M2-50-3000-P-HG |
| 2.4m | DN 50 | 1200mm | DN 50 | 13.3 kg | 20kg | SS | SS | R2-M2-50-2400-P-SS |
| 3.0m | DN 50 | 1800mm | DN 50 | 16.6 kg | 20kg | SS | SS | R2-M2-50-3000-P-SS |
| 2.4m | DN 50 | 1200mm | DN 50 | 9.9kg | 20kg | HG | AL | R2-M2-50-2400-P-AL |
| 3.0m | DN 50 | 1800mm | DN 50 | 11.7kg | 20kg | HG | AL | R2-M2-50-3000-P-AL |
- AL: Aluminium · HG: Hot-dip galvanised · SS: Stainless steel · All dimensions are nominal, in metric sizes.
- *Maximum equipment weight refers to operational limits, not its structural capacity and includes the total of any equipment and its mounting bracket.
