Swivelpole™ C1 M1 HVPT
2.4 - 3.0m
Column mounted
- TopDN 40 Plain
New Build
Quick links
Details
- Designed for installation in accordance with IEC standards.
- Ideal for internal structure lighting, area lighting and sub-station walls.
Standard pole top/base finish options
- Hot-dip galvanised (HG)
Standard Maxis™ joint finishes
- Hot-dip galvanised (HG)
Support material
User guides
Technical
Where to buy?
Ordering information
| Installed height | Pole top | Pole top length | Pole weight | Max equipment weight* | Maxis™ joint finish | Pole finish | Product code |
|---|---|---|---|---|---|---|---|
| 2.4m | DN 40 | 1250mm | 15.6kg | 20kg | HG | HG | C1-M1-HVPT-2400-P-001-HG |
| 3.0m | DN 40 | 1750mm | 17.3kg | 20kg | HG | HG | C1-M1-HVPT-3000-P-001-HG |
| 2.4m | DN 40 | 1250mm | 17.1kg | 20kg | HG | AL | C1-M1-HVPT-2400-P-001-HG-AL |
| 3.0m | DN 40 | 1750mm | 19.5kg | 20kg | HG | AL | C1-M1-HVPT-3000-P-001-HG-AL |
- HG: Hot-dip galvanised · All dimensions are nominal, in metric sizes.
- *Maximum equipment weight refers to operational limits, not its structural capacity and includes the total of any equipment and its mounting bracket.
Related products

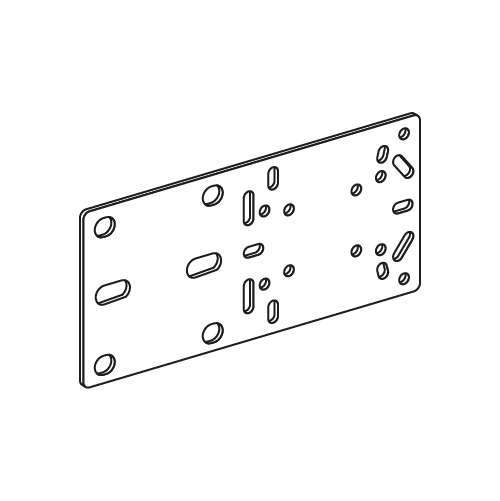

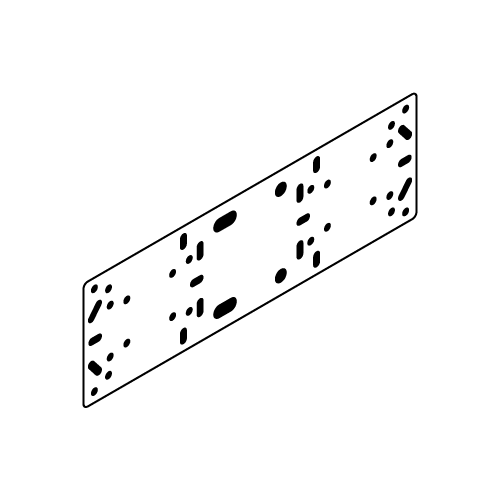

Junction box plates
